OLED 单色模块

* 下载规格书请点击型号。


Interface: 6800/ SPI/ I2C
→ Compatible with our standard LCD PIN by 68xx Parallel interface. (*AL1601A & SC1601A are not compatible.)
Process: COG + Board
Color: White/ Yellow
MODEL NO. DISPLAY  MODEL SIZE         VIEW        CHARACTER     DOT      PHOTO
FORMAT WxHxT (mm) AREA SIZE SIZE
AL0802A 8 x 2 58 x 32 x 9.7 29.81 x 13.5 2.96 x 5.56 .56 x .66 OLED Character 8x2
AL1601A 16 x 1 80 x 36 x 9.7 61.56 x 8.56 3.07 x 6.56 .55 x .75 OLED Character 16x1
AL1602A 16 x 2 85 x 30 x 9.7 58.22 x 13.52 2.97 x 5.57 .57 x .67
AL1602B 16 x 2 80 x 36 x 9.7 58.22 x 13.52 2.97 x 5.57 .57 x .67 OLED Character 16x2
AL1604A 16 x 4 87 x 60 x 9.7 58.2 x 22.8 2.95 x 4.75 .55 x .55 OLED Character 16x4
AL2002A 20 x 2 116 x 37 x 9.7 75.52 x 13.52 3.22 x 5.57 .60 x .65 OLED Character 20x2

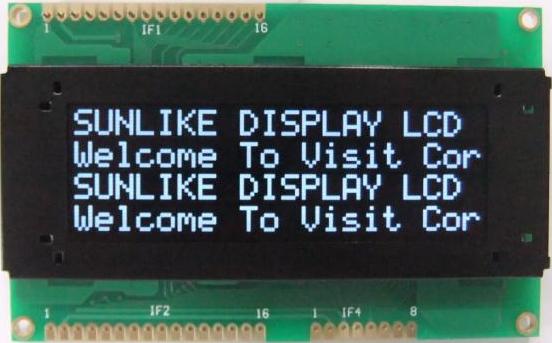

AL2004A 20 x 4 98 x 60 x 9.7 72.42 x 22.82 2.97 x 4.77 .578 x .57 OLED Character 20x4
AL2004C 20 x 4 118 x 43 x 9.7 72.42 x 22.82 2.97 x 4.77 .578 x .57
AL4002A 40 x 2 182 x 33.5 x 9.7 149.7 x 13.5 3.20 x 5.55 .60 x .65 OLED Character 40x2



OLED Graphic Module

MODEL NO. SIZE  DISPLAY MODEL SIZE ACTIVE DRIVER IC INTERFACE PHOTO
(inch) FORMAT WxHxT (mm) AREA
AL64128A 0.96 64 x 128 31.0 x 37.6 x 5.0 10.86 x 21.74 SH1107 6800/ 8080/ SPI/ I2C
AL7240A 0.42 72 x 40 12.0 x 15.0 x 4.0 9.196 x 5.18 SH1106 I2C ​​​​​​​
AL9616A 0.69 96 x 16 42.0 x 16.0 x 5.0 17.26 x 3.18 SSD1306 I2C
AL12832A 0.91 128 x 32 42.0 x 16.0 x 5.0 22.384 x 5.584 SSD1306 I2C
AL12832B 2.23 128 x 32 84.0 x 44.0 x 8.5 55.02 x 13.1 SSD1309 6800/ 8080/ SPI/ I2C
AL12832C 0.91 128 x 32 37.0 x 12.5 x 4.7 22.384 x 5.584 SSD1306 SPI/ I2C
AL12864A 2.7 128 x 64 93.0 x 70.0 x 9.3 61.41 x 30.69 SSD1322 6800/ 8080/ SPI
AL12864B 1.54 128 x 64 42.04 x 41.22 x 6.0 35.052 x 17.516 SSD1309 6800/ 8080/ SPI/ I2C
AL12864C 0.96 128 x 64 27.0 x 28.8 x 5.9 21.744 x 10.864 SSD1306 6800/ 8080/ SPI/ I2C
AL12864H 2.42 128 x 64 70.5 x 49.6 x 6.3 55.01 x 27.79 SSD1309 6800/ 8080/ SPI/ I2C
AL136160A 1.07 136 x 160 32.7 x 32.2 x 1.0 27.18 x 23.1 SH1108 SPI
AL25664A 3.1 256 x 64 110.0 x 44.0 x 9.7 76.78 x 19.18 SSD1322 6800/ 8080/ SPI
AL25664B 5.5 256 x 64 180.0 x 65.0 x 9.7 135.65 x 33.89 SSD1322 6800/ 8080/ SPI
